PCE - Concrete Screw Mechanical anchors
Chumbador mecânico tipo parafuso atarraxante e sem expansão. Produzido em aço carbono, cementado e temperado. Acabamento zincado branco e organometálico.
FEATURES AND ADVANTAGES
- Quick and easy installation.
- Promotes high loads.
- Through application.
- Its threads cut into the concrete. (4)
- Load distributed over the entire length of the fastener.
- There is no expansion and consequent stresses in the concrete.
- Reduced distances between fixings and edge.
- Removable and reusable (in a new hole). (5)
- Identification of the dimensions on the fastener head.
- Hole diameter equal to the nominal diameter of the anchor bolt.
- Application using an impact wrench. (6)
- Also available with an organometallic finish (500 h Salt Spray).
MAIN APPLICATIONS
- Metal structures and supports.
- Façade systems.
- Storage and handling systems.
- Guardrails.
- Steel-frame structures.
- Signage.
- Fastening for precast systems.
- Installations in general.
Concrete
APPLICATION METHOD
Step: 1/4
Drill the hole to the diameter and depth indicated.
Step: 2/4
Clean the hole.
Step: 3/4
Position the part to be fixed and apply the screw.
Step: 4/4
With the aid of the impact wrench*, complete the fastening.
VIDEO

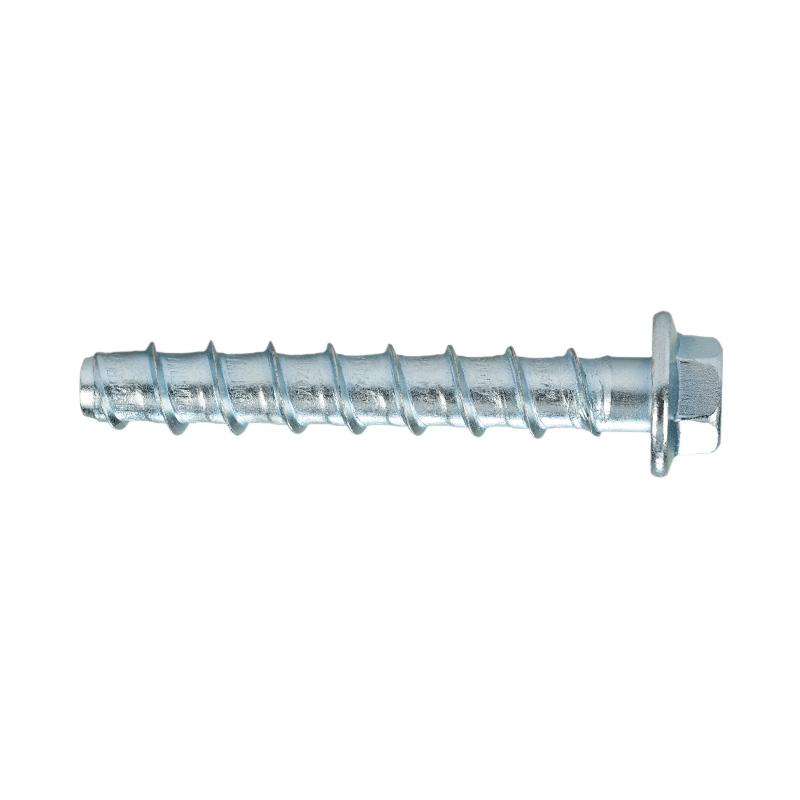

TECHNICAL DATA - GALVANIZED
| Code* | Anchor bolt dimensions (mm) | Hole | Distances ³ (mm) | Maximum thickness to be fixed (mm) | Wrench (mm) | Fastening torque (kgf.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| Nominal diameter | Length | Diameter | Minimum depth¹ (mm) | Fastener fastener | Fastener edge | ||||
| PCE850 | 8 | 50 | 8 | 65 - tfix | 90 | 45 | 5 | 13 | 5 |
| PCE875 | 75 | 90 - tfix | 30 | ||||||
| PCE8100 | 100 | 115 - tfix | 55 | ||||||
| PCE1060 | 10 | 60 | 10 | 75 - tfix | 90 | 15 | 14 | 7 | |
| PCE1075 | 75 | 90 - tfix | 30 | ||||||
| PCE10100 | 100 | 115 - tfix | 55 | ||||||
| PRODUCT LAUNCHPCE10150 | 150 | 165 – tfix | 105 | ||||||
| PCE1260 | 12 | 60 | 12 | 75 - tfix | 90 | 15 | 19 | 9 | |
| PCE1275 | 75 | 90 - tfix | 30 | ||||||
| PCE12100 | 100 | 115 - tfix | 55 | ||||||
| PRODUCT LAUNCHPCE12150 | 150 | 165 – tfix | 105 | ||||||
* Reference code for galvanized version. For the organometallic coated version, add OM at the end of the code.

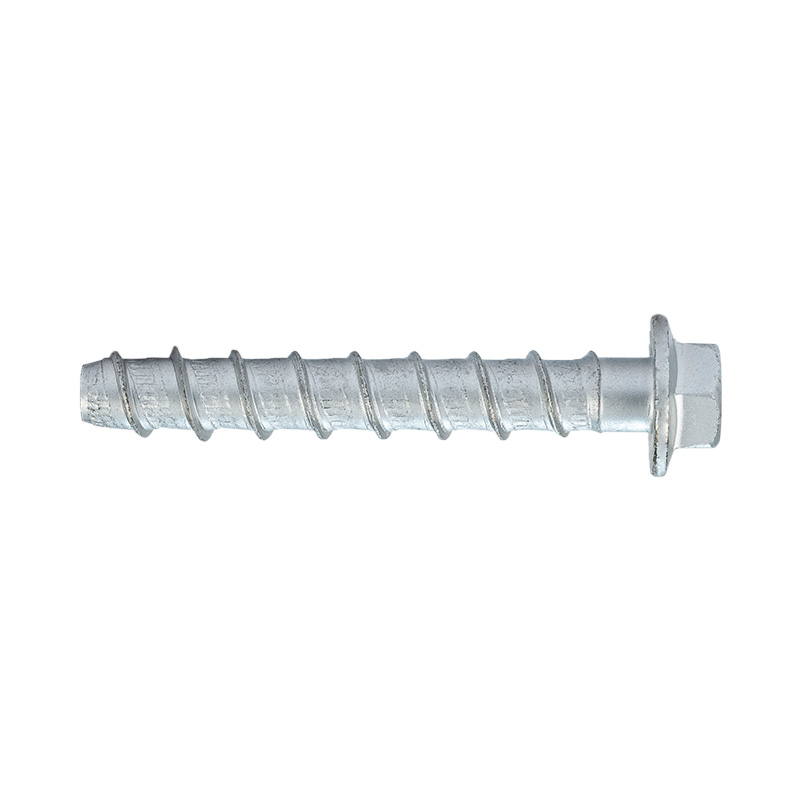

TECHNICAL DATA - ORGANOMETALLIC
| Inlay (mm) | Ultimate loads² (kgf) | |||||
|---|---|---|---|---|---|---|
| PCE8 | PCE10 | PCE12 | ||||
| Tensile | Shear | Tensile | Shear | Tensile | Shear | |
| 45 | 1.600 | 1.050 | 1.640 | 1.930 | 1.660 | 2.500 |
| 65 | 2.600 | 1.800 | 2.760 | 2.840 | 3.180 | 3.110 |
| 80 | 4.300 | 2.900 | 4.480 | 3.720 | 4.540 | 4.125 |
| 95 | 5.500 | 3.100 | 5.750 | 3.900 | 5.900 | 4.860 |
(1) tfix = thickness of the part to be fastened.
(2) The values obtained are based on the average of tests and technical specifications for 30 MPa concrete. Caution: These values are ultimate loads; always use a safety factor. For more information, see the Technical Data section on page 135.
(3) Recommended minimum distance considering the minimum embedment depth. For greater embedment depths, use the following formula: Distance between fasteners (2 × hef) / Distance from the edge (1 × hef).
(4) The thread design may vary depending on the manufacturing process, but this does not affect performance. hef – Effective embedment depth.
(5) This practice should be evaluated before taking job-specific loads into account.
(6) Recommended impact wrench: 350 N·m
